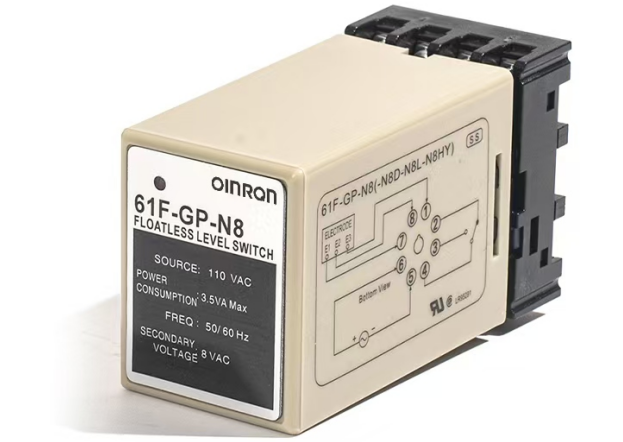

How to pick liquid level relay for industrial tanks?

Core Application Requirements for Liquid Level Relay Selection

Matching Functionality to Tank Control Goals: Fill, Drain, Maintain, Alarm, or Pump Protection

When choosing a liquid level relay, start by figuring out what the tank actually needs to do: fill up, empty out, stay at a certain level, sound alarms, or protect pumps. For filling tasks, most relays kick in the pump once the liquid goes below a certain mark. Drain setups work differently they usually trigger an emptying process when levels get too high. The maintain function keeps things balanced between two points, which comes in handy for stuff like adding chemicals where precision matters. Alarms are there to warn folks when levels hit dangerous spots either way, stopping disasters like floods or equipment running dry. Pump protection really matters too. According to some research from last year, around three quarters of all pump breakdowns happen because someone didn't get the level control right. Make sure to pick the right output type for what needs doing SPDT works well for controlling pumps while DPDT handles valves better. And don't forget to check if it plays nicely with whatever kind of switching logic makes sense for the application.

Safety-Critical Logic Needs: Fail-Safe Design, Anti-Hunting Delays, and Positive Safety Logic

When working with systems where safety is paramount, relay logic needs to focus on keeping everything intact. Fail-safe designs work by cutting off power when something goes wrong, bringing pumps or valves back to their safest position. This becomes really important when dealing with dangerous liquids. Anti-hunting delays usually between 5 to 30 seconds help stop the constant switching that happens when levels bounce around close to set points. These delays cut down wear and tear on machinery and actually make motors last longer. With positive safety logic, if there's a problem like a broken sensor, the equipment shuts down right away to prevent anything bad happening. Places storing fuels and other hazardous materials get extra protection from using 2-wire circuits instead of 3-wire ones since this helps catch false readings before they cause issues. Following standards like IEC 61508 makes a big difference in preventing accidents. The latest Safety Systems Report shows that skipping these basic protections raises risk levels by about 40%. For easier fixes and maintenance down the road, look for relays that have indicator lights showing what's going on plus manual controls so technicians can take over when needed.

Liquid Properties and Sensing Compatibility for Reliable Operation

Conductivity Thresholds: Why Fluid Conductivity Dictates Liquid Level Relay Suitability

How well a liquid level relay works really comes down to how conductive the fluid is. Most resistive sensing relays need at least some conductivity, usually somewhere between 1 and 20 microsiemens per centimeter, to create a proper circuit between those submerged probes. That's why conductive stuff like industrial wastewater or acidic solutions tend to work pretty well with this kind of setup. On the flip side, things like ultrapure water, various oils, and most solvents have conductivity levels below 5 microsiemens, which means they just won't play nice with standard resistive systems. When dealing with these non-conductive materials, engineers typically turn to other options like capacitive sensors or ultrasonic technology instead. These alternatives can detect liquid levels accurately without needing any electrical conduction at all, which solves the problem for applications where traditional methods simply don't cut it.

Challenges with Low-Conductivity or Coating-Prone Media: When Resistive Sensing Fails

When fluids have conductivity below 1 microsiemens per centimeter, they simply don't carry enough current for resistive sensors to work properly. This means even when tanks are completely full, the sensors might show dangerously low levels instead. The problem gets worse with thick or sticky substances like syrup, sludge, or industrial adhesives. These materials tend to stick to the sensor probes over time, forming an insulating layer that blocks signals from getting through. Dairy processors know this all too well since their tanks see about 34 percent more sensor problems caused by proteins sticking to equipment according to recent industry reports. For applications dealing with these challenging conditions, switching to non-contact options makes sense. Capacitive and ultrasonic systems avoid direct contact with electrodes altogether, which cuts down on cleaning requirements and keeps measurements accurate despite messy environments.

Electrical, Environmental, and Mechanical Integration Considerations

Power, Interface, and Enclosure Requirements: Voltage Ratings, PLC Compatibility, and IP/NEMA Ratings

When adding a liquid level relay to any system, there are several key areas that need proper consideration including electrical requirements, environmental conditions, and mechanical aspects. The voltage rating needs to align with what power source is actually available. Most installations work well with either 24 volts DC or 120 volts AC supplies, but getting this wrong can lead to all sorts of problems down the road. Automated plants will want to check if their PLCs can talk to the relay they're installing. Look for models that offer dry contacts or those sending out standard analog signals like 4 to 20 milliamps so everything connects smoothly with existing control panels. Protection against harsh conditions matters too. Enclosures rated at least IP65 or meeting NEMA 4X specifications help keep dust, water, and chemicals from damaging components inside tanks located outdoors or in industrial settings. Heat is another factor often overlooked. Components start breaking down faster when exposed to constant high temps over 50 degrees Celsius (around 122 Fahrenheit). For places where corrosion might be an issue, going with stainless steel or tough polycarbonate housing materials makes sense for lasting performance.

Choosing Between Key Models: 72.01 vs. 72.11 Liquid Level Relays

Choosing between model 72.01 and 72.11 really comes down to what kind of work needs doing in the system. Model 72.01 works great for straightforward filling and draining operations where the fluid has good conductivity levels. Setup is pretty straightforward too, making it an affordable option for many standard applications. On the other hand, model 72.11 handles tougher jobs, especially when dealing with fluids below 5 microsiemens per centimeter conductivity. This version includes features like adjustable response settings, built-in safety protocols, and pump safeguards that make all the difference in critical industrial environments where reliability matters most.

Opt for the 72.11 in volatile or high-risk settings requiring advanced safeguards, while the 72.01 remains suitable for routine monitoring in stable, non-critical environments. Always verify model capabilities against your fluid characteristics and control objectives.
