Maintenance Tips for Emergency Stop Safety Rope Switch

The Role of Emergency Stop Safety Rope Switches in Industrial Safety

Safety rope switches for emergency stops serve as critical protection measures in dangerous industrial settings where workers need to shut down machines quickly by pulling a physical cable. According to OSHA data from 2023, these systems cut down reaction time by around 85 percent when compared with regular push button emergency stops. This faster response helps avoid serious accidents like getting caught in moving parts, crushed between components, or injured by sudden equipment movements. When someone gives that cable a tug, it cuts off power throughout whole production areas almost instantly. That makes these rope switches especially valuable on big conveyor belts and other automated equipment spread out over wide factory floors where traditional buttons might be too far away to reach in time during emergencies.

NFPA 79, OSHA, ANSI, and IEC Standards for Emergency Stop Systems

Compliance with key safety standards ensures emergency stop systems perform reliably under critical conditions:

These regulations require failsafe designs that eliminate partial activations or delayed responses. ANSI B11.19-2019 further mandates monthly functional testing to verify system integrity, reinforcing the importance of adherence to recognized safety protocols.

How Compliance Ensures Operational Safety and Legal Protection

Businesses following recognized safety protocols cut their liability risk by around 63% when facing workplace injury lawsuits according to the National Safety Council (2023). Courts tend to look closely at whether companies are aligned with regulations when determining negligence cases. For insurance purposes, getting certified emergency stop systems makes a real difference too. Facilities that meet ISO 13850 standards often see their premiums drop by about 22% per year as reported by IBHS last year. Keeping thorough maintenance logs matters a lot during OSHA inspections or if things go south legally. Weekly checks on equipment tension combined with yearly reviews from outside experts provide solid documentation showing proper care was taken over time.

Proper Installation of Emergency Stop Safety Rope Switches

Selecting the right cable type and attachment methods for reliable activation

When starting the installation process, pick out strong cables made from materials like stainless steel or galvanized aircraft wire that actually comply with those ANSI/ASSE Z244.1 tension standards. For keeping everything balanced during operation, swaged fittings work well alongside turnbuckles and those handy spring-loaded tensioners that help spread the load evenly across the entire length of cable. If working in really tough conditions though, it's worth investing in braided polyethylene coated cables paired with IP69K rated connectors at both ends. These will stand up much better against water damage, chemical exposure, and general wear and tear that happens over time in industrial settings.

Key components and best practices for pull-cord switch installation

• Position pulley systems at 90° angles to minimize friction and ensure smooth actuation
• Employ breakaway connectors rated for 1.5x the maximum operational tension to prevent accidental disengagement
  Integrate tool-accessible manual reset mechanisms to prevent unauthorized restarts after activation, enhancing control and accountability.

Avoiding common installation errors that compromise safety

Three primary installation mistakes account for 68% of pull-cord failures identified in OSHA investigations:

1. Over-tensioning cables beyond 15% stretch capacity, leading to sluggish response
2. Using non-compliant brackets that allow more than 5° angular deflection during pulls
3. Failing to document torque settings for tensioning hardware during commissioning and inspections

Correctly calibrated installations reduce false stop incidents by 83% while maintaining the required 0.5-second machine halting time.

Cable Tension Maintenance and Performance Optimization

Recommended Cable Tension and Maintenance Intervals for Reliability

Getting the right amount of tension on those cables matters a lot if we want things to work properly. The ideal range sits somewhere around 20 to 40 Newtons, which translates to about 4.4 to 8.8 pounds of force. Check this tension roughly every three to six months when everything's running normally. But if the environment gets really bumpy or experiences big temperature swings, then monthly checks become necessary because all that movement can throw off the alignment over time. Plants that stick to these maintenance intervals report cutting down false alarms by nearly three quarters and shaving almost a second off their emergency response times according to last year's industry safety review.

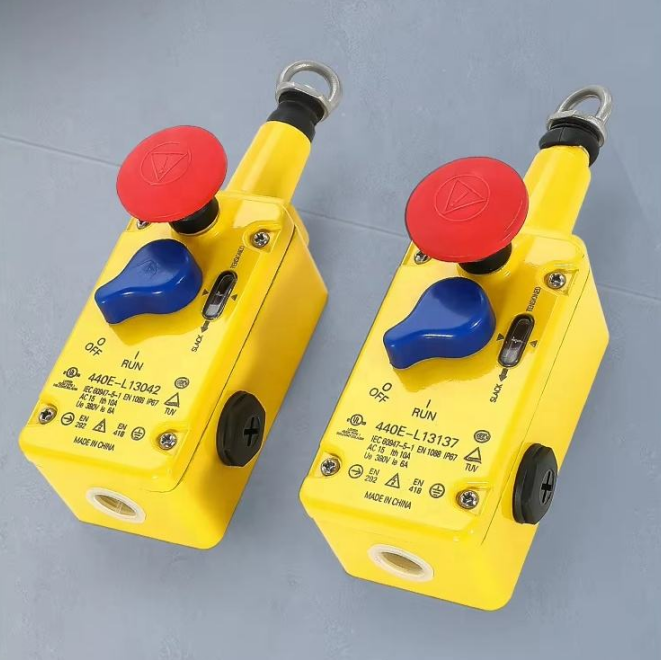

Using Tension Monitoring Features and Viewing Windows for Real-Time Checks

Today's rope pull switches come equipped with built-in tension indicators or those handy color coded windows that let workers check things at a glance. Most models have those green to red indicators or digital readouts that match up with the latest safety standards from ANSI/ISA 84.00.01-2022. This means plant personnel can verify everything is compliant without needing any fancy diagnostic equipment. The immediate feedback these systems provide really cuts down on mistakes when doing regular maintenance checks around the facility.

Step by Step Guide to Adjusting Emergency Stop Pull-Cord Tension

1. Isolate power to the connected machinery
2. Loosen the cable clamp using a 5 mm hex key
3. Pull the cord taut until the tension gauge reads 30 N (6.6 lbf)
4. Secure the clamp while ensuring alignment with the switch housing
5. Test activation with a calibrated 70 N (15.7 lbf) pull
6. Record the adjustment in maintenance logs

Risks of Incorrect Tension: False Resets and Failure to Activate

When tension gets too high over 50 Newtons, it puts serious strain on internal parts and can cause false resets as much as 40% of the time according to IEC standards from 2021. On the flip side, if tension drops below 15 Newtons, activation times get delayed, sometimes going past OSHA's safety requirement of half a second for emergency responses. Looking at incidents reported in 2024 shows a worrying trend where nearly one out of five machine injuries were linked to improperly maintained rope switches. These aren't just numbers on paper either many workers suffered serious harm because someone overlooked basic maintenance checks that could have prevented these accidents altogether.

Routine Testing, Inspection, and Maintenance Documentation

Recommended frequency and protocols for testing emergency stop function

Conduct full-system activation tests weekly to verify functionality. Perform monthly validation of response times, ensuring shutdown occurs within 0.5 seconds as required by IEC 60204-1. In high-throughput operations, add quarterly load testing under peak conditions to detect wear-related performance issues before failure occurs.

Visual inspection checklist for pull cord operated emergency stops

A thorough inspection should include:

• Cable condition (fraying, corrosion, kinks)
• Pulley and guide roller alignment
• Visibility of tension indicator marks
• Integrity of anchorage points
• Legibility and placement of emergency signage

Maintaining compliance records and maintenance logs

Digitized maintenance logs reduce audit preparation time by 73% (2023 material handling safety study). Essential documentation includes:

Leveraging predictive maintenance to reduce unplanned downtime

Leading facilities now use IoT-enabled sensors for continuous monitoring of cable tension, elasticity, and switch resistance. This predictive approach identifies early signs of wear and enables proactive repairs, reducing emergency stop failures by 92% (Ponemon 2023) and minimizing unplanned downtime.

Environmental Durability and Long Term Protection of Rope Pull Switches

NEMA and IP Ratings for Emergency Stop Safety Rope Switches in Harsh Conditions

Emergency stop switches installed in tough environments need to handle their surroundings properly. The basic standards are IP65 rating against dust and IP67 when there's going to be brief contact with water. When dealing with chemicals though, things get trickier. That's where NEMA 4X comes into play since it stands up better against corrosive substances over time. A recent study from Verdantix back in 2023 found something pretty alarming actually – nearly two thirds of all safety system breakdowns happened because these protective measures weren't adequate enough. This highlights why sticking to those IEC 60947-5-5 guidelines isn't just paperwork but makes sense for keeping operations running smoothly without unexpected interruptions caused by equipment failure due to environmental factors.

Protecting Cables From Moisture, Dust, Chemicals, and Physical Damage

Implement targeted protective strategies based on site-specific hazards:

Ensuring Reliability in Outdoor, High Vibration, and Extreme Environments

When dealing with vibrations over 5g, it makes sense to go with dampening mounts certified under MIL-STD-810G standards to keep switches working properly. Extreme temperature ranges from -40 degrees Celsius up to 85 degrees pose their own challenges. That's where beryllium copper contacts come in handy for maintaining good conductivity. Stainless steel cables are another smart choice since they handle thermal expansion better. Thermal expansion problems actually cause about three quarters of all safety issues at facilities located in Arctic regions according to a study published in Industrial Safety Journal back in 2022. All these thoughtful material selections really pay off when equipment needs to perform reliably despite harsh environmental conditions over extended periods.
